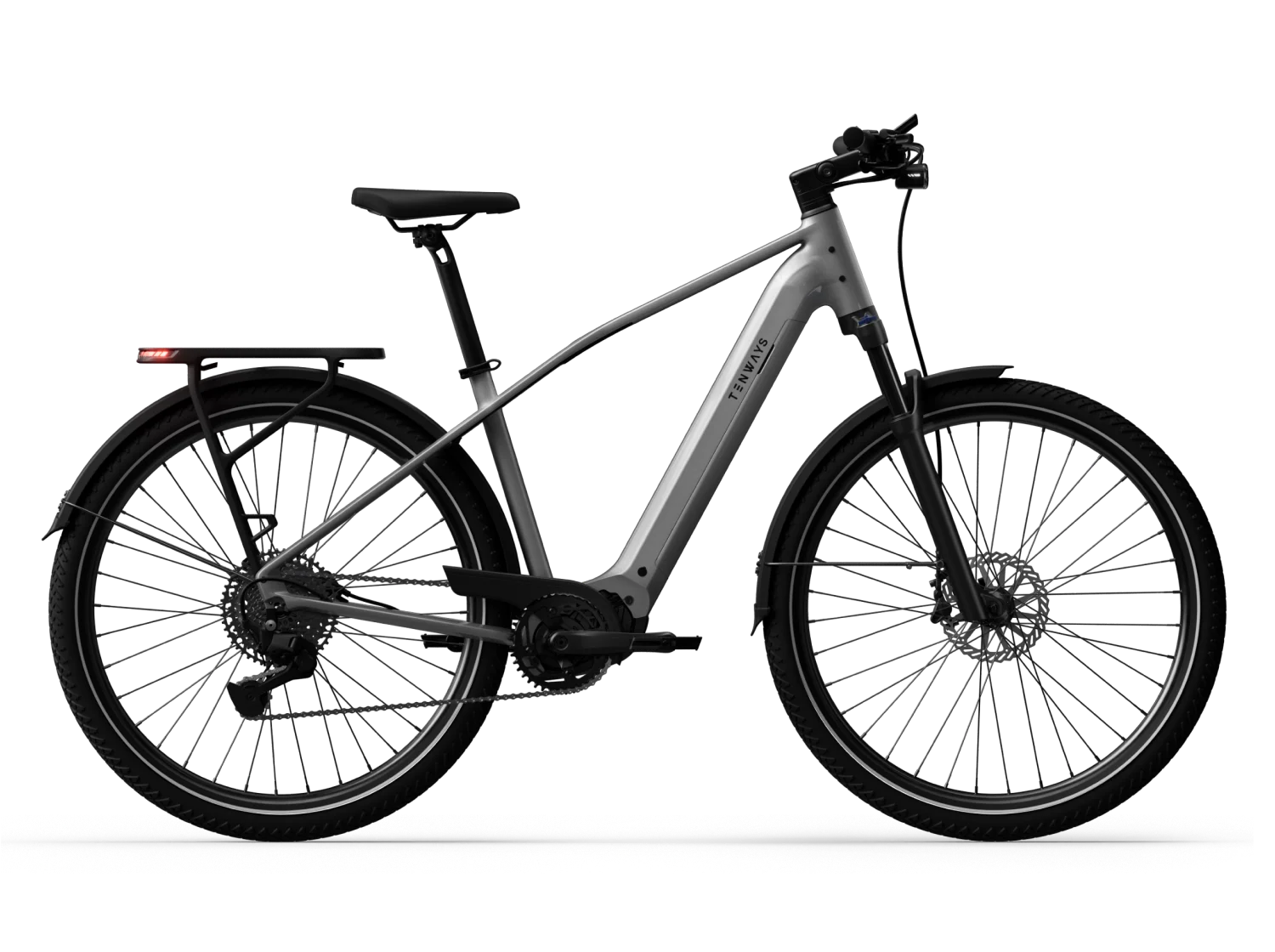

TENWAYS AGO X
- Regular price
- €1.999
- Sale price
- €1.999
- Regular price
-
€2.199 - Unit price
- per
New Launch Offer
: 'wdith' transformation is not supported)

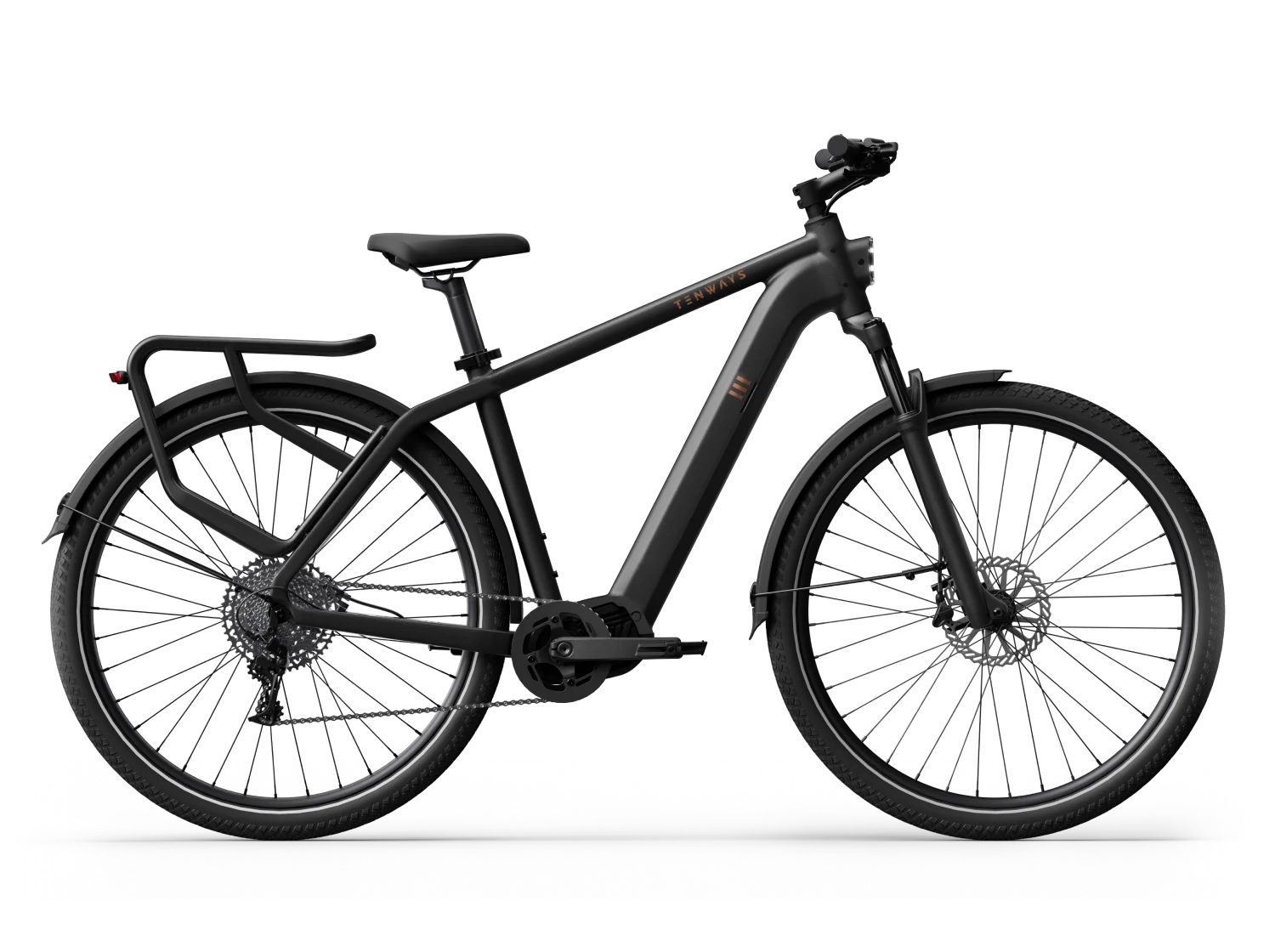

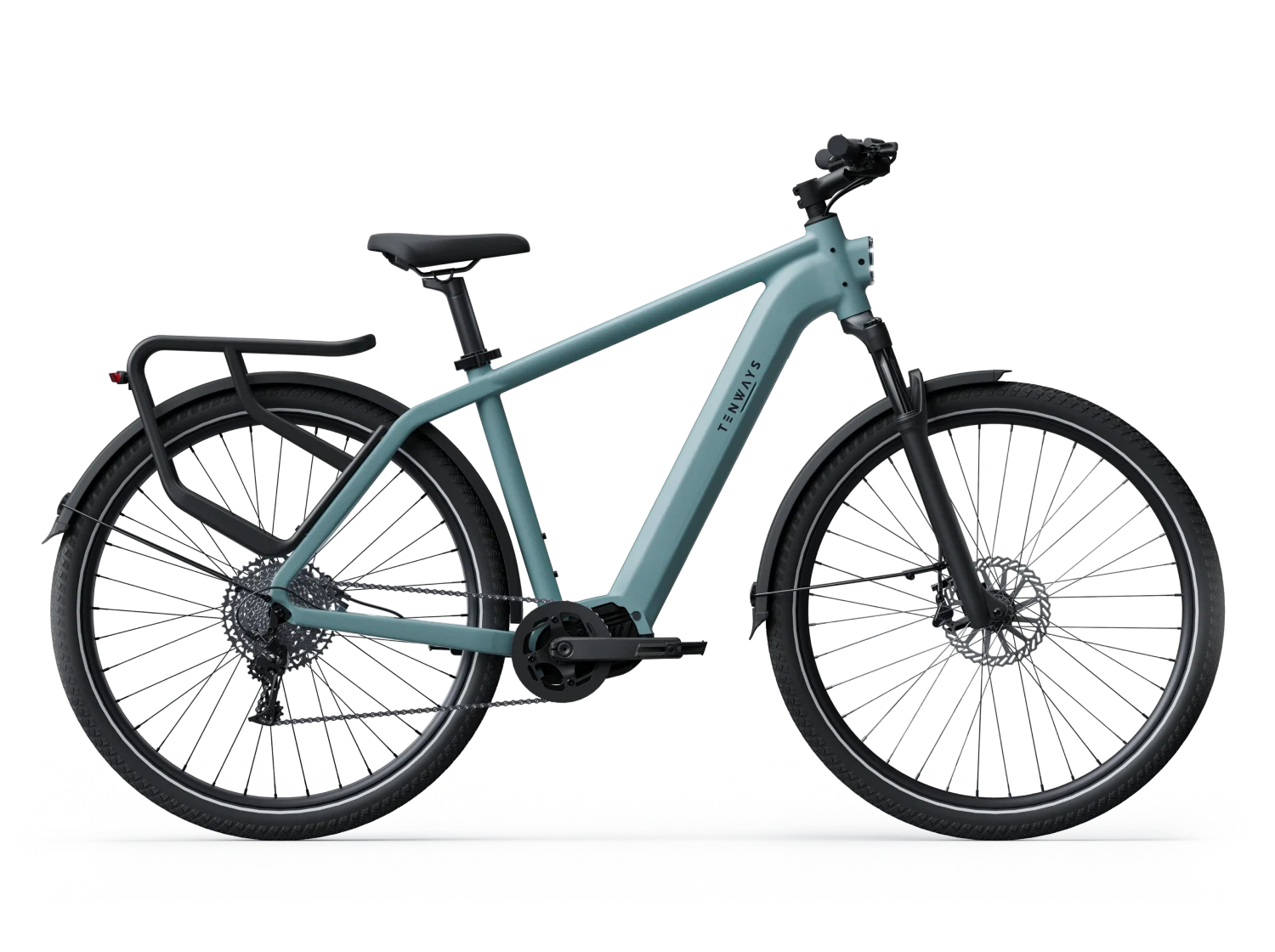

TENWAYS AGO X
- Regular price
- €1.999
- Sale price
- €1.999
- Regular price
-
€2.199 - Unit price
- per
A powerful all-rounder for both urban commuting and off-road adventures.
- 80 Nm Mid-drive Motor
- Up to 100 km Range
- Portable Battery
- Shimano 10-speed Drivetrain
- Hydraulic Front Fork
- Hydraulic Disc Brakes
Subscription Gift
€98
Mudguards and Kickstand
Subscribe to our newsletter to receive FREE accessories with your AGO X order.
Subscription Gift
€99
Rear Carrier with MIK HD
Convenience and simplicity working between you, your e-bike and all the accessories.
Insurance
LAKA
Add Laka insurance to your cart and protect your bike (for DE, FR, NL, and BE). You will receive the email for insurance payment & activation after placing your e-bike order.
Learn more
Pay with Klarna:
Pay now. Direct Bank Transfer.
Pay in 30 days. Interest-free.
Pay over time. Monthly financing.
Buyer protection included.
Free shipping & VAT included & 2-year warranty
- Regular price
- €1.999
- Regular price
-
€2.199 - Sale price
- €1.999
- Unit price
- per
The Urban All-Rounder
Our Four Promise To You
order today ,ride in 7 days
Order today,
ride in 7 days
200+ offline service centers across Europe
Responsive support that guarantees results
Spare parts supplied beyond the warranty period
Our Four Promise To You
Our Four Promise To You
Order today,
ride in 7 days
200+ offline service centers across Europe
Responsive support that guarantees results
Spare parts supplied beyond the warranty period

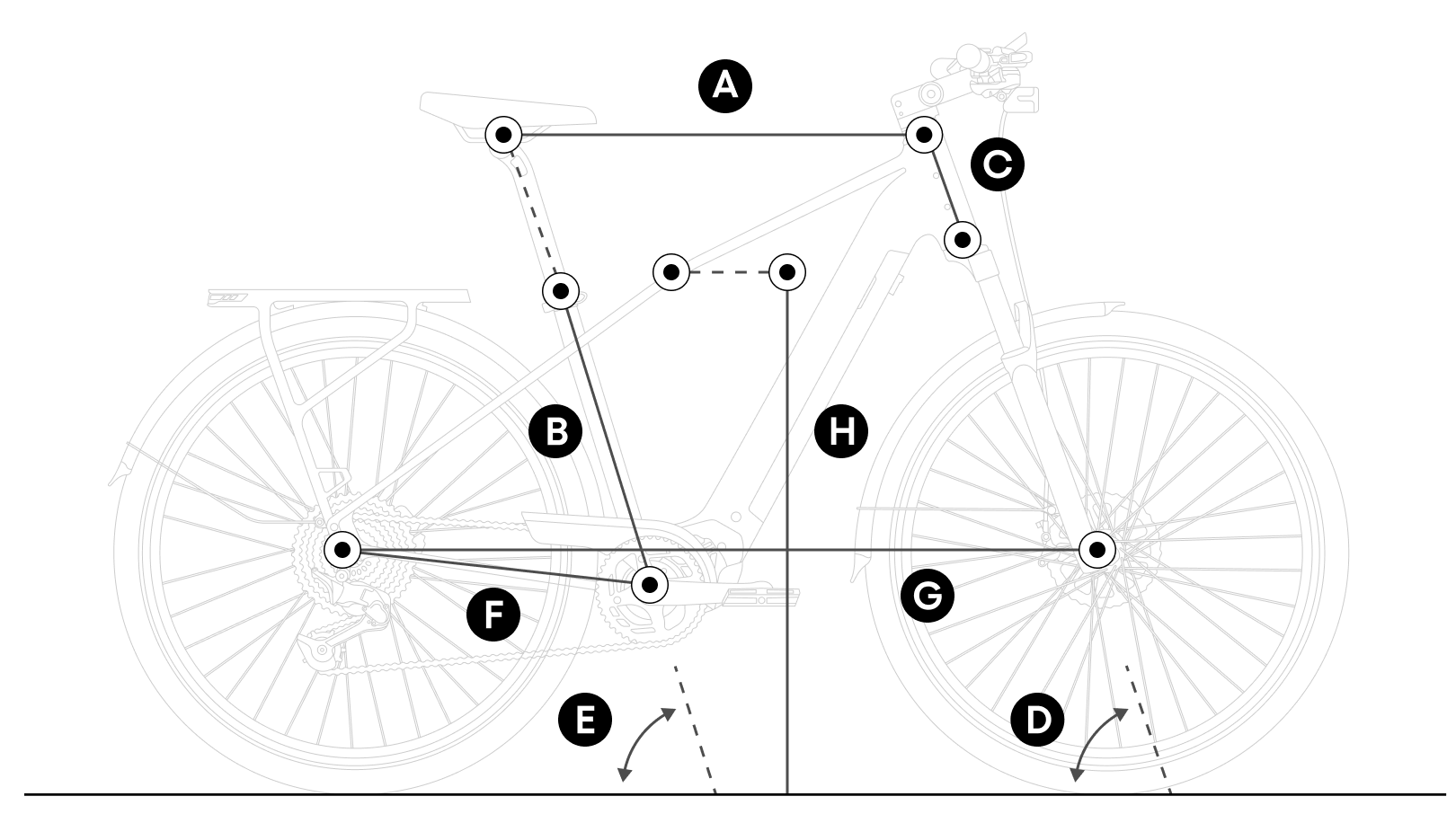

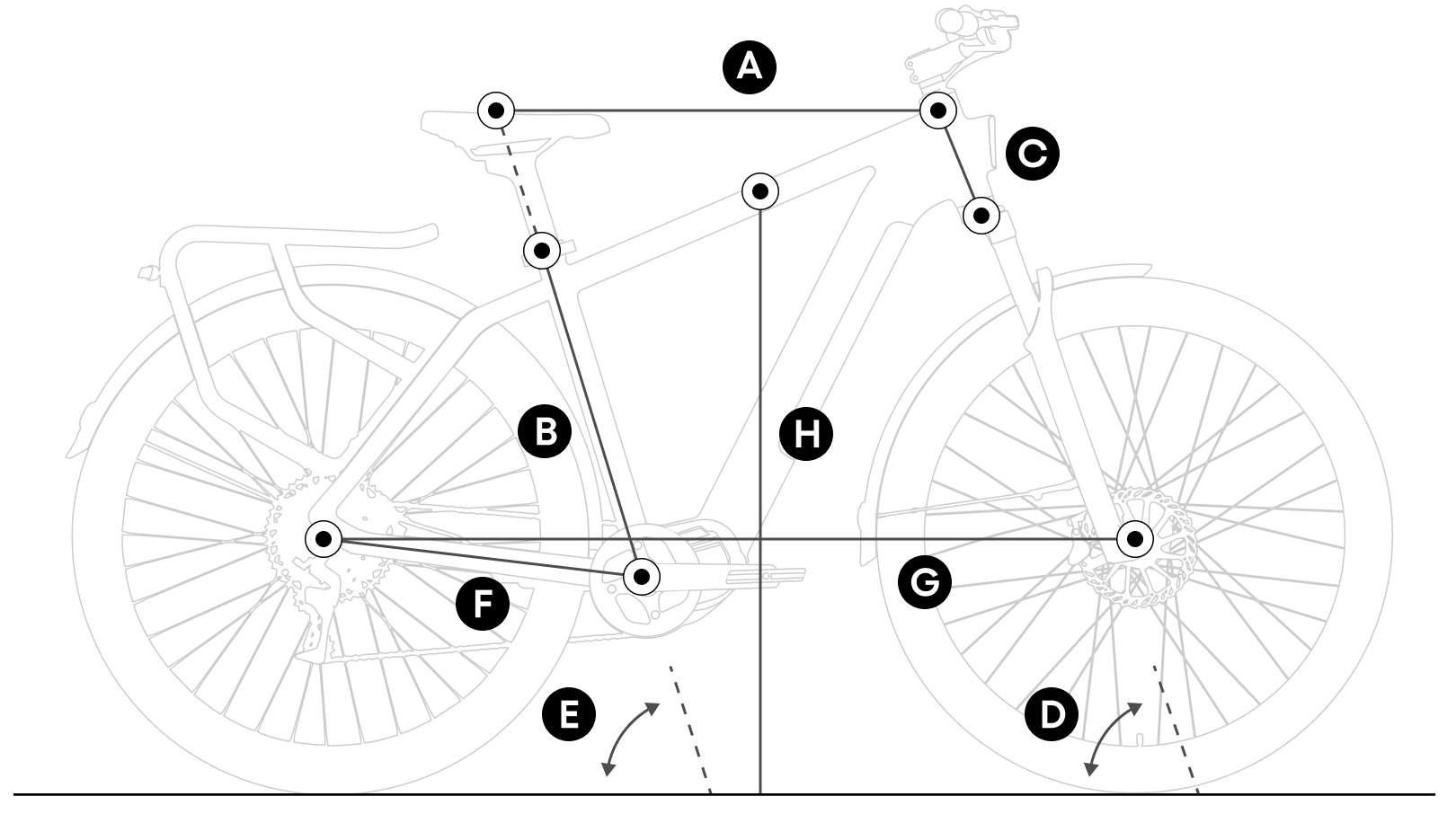

Geometry
Specification
Special Edition
Classic Edition
| SIZE (mm) | L Size |
|
A
Effective top tube
|
624.8 |
|
B
Seat tube length
|
470 |
|
C
Head tube
|
160 |
|
D
Steering angle
|
70 |
|
E
Seat tube angle
|
73 |
|
F
Chainstay
|
460 |
|
G
Wheelbase
|
1130.5 |
|
H
Standover
|
843.2 |
| SIZE (mm) | L Size |
|
A
Effective top tube
|
625 |
|
B
Seat tube length
|
500 |
|
C
Head tube
|
160 |
|
D
Steering angle
|
70 |
|
E
Seat tube angle
|
73 |
|
F
Chainstay
|
460 |
|
G
Wheelbase
|
1146.3 |
|
H
Standover
|
847 |
ELECTRONIC
-
MotorSpecial Edition:
TENWAYS Mid-drive Motor (250 W Power, 80 Nm Torque)
Classic Edition:
Bafang M410 Mid-drive Motor (250W Power, 80 Nm Max. Torque) -
SensorIntegrated Torque Sensor of the Mid-drive Motor
-
DisplayTFT LCD Color Display
-
BatterySpecial Edition:
560 Wh (36 V, 15.6 Ah) Lithium-ion Battery with LG Cells
Classic Edition:
504 Wh ( 36 V, 14 Ah ) Lithium-ion Battery with LG Cells -
ControllerIntegrated Controller of the Mid-drive Motor
-
LightsStVZO-compliant
PERFORMANCE
-
Top Speed25 km/h
The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
-
RangeUp to 100 km
Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
-
Climbing AbilitySuitable for climbing slopes *
The actual performance would depend on the rider's physical strength.
COMPONENTS
-
Frame6061 Aluminium Frame
-
Front ForkSuspension Front Fork
-
DrivetrainSpecial Edition:
SHIMANO CUES 10-speed Drivetrain
Classic Edition:
SHIMANO DEORE 10-speed Drivetrain -
ChainringShimano CUES 38 T
-
CassetteShimano CUES 11–48 T
-
TireCST Puncture-proof 29" Tires
-
BrakeSHIMANO Hydraulic Disc Brakes
-
Wheels29'' Aluminium Rims
-
CranksetAluminium Alloy Crankset
-
Weight*Special Edition:
Net weight: 24.3 kg(excluding all accessories)
Full weight: 28.2 kg(including all accessories)
Permissible Max. Weight: 145 kg(including the bike's own weight)
MIK HD Rear Carrier, Max. Load: 27 kg
Classic Edition:
Net weight: 27 kg(excluding all accessories)
Full weight: 29 kg(including all accessories)
Permissible Max. Weight: 150 kg(including the bike's own weight)
Rear Carrier Max. Load: 25 kgAll stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
Specifications
Version
SpecialEdition
€1.999
ClassicEdition
€1.799
Color
Accessories
PERFORMANCE
560 Wh Battery
504 Wh Battery
80 Nm Mid-Drive Motor
80 Nm Mid-Drive Motor
Shimano 10-speed Drivetrain
Shimano 10-speed Drivetrain
100 mm Suspension Front Fork
100 mm Suspension Front Fork
Specifications
YOUR RIDE. YOUR CHOICE.
Special Edition
Classic Edition
Battery Capacity
560 Wh
504 Wh
562 Wh
Battery capacity
504 Wh
Battery capacity
Stem
Adjustable
Rigid
Adjustable
Stem
Rigid
Stem
Rear Carrier
With
MIK HD System
Without
MIK System
With
MIK System
MIK System
Rear Carrier
WIthout
MIK System
MIK System
Rear Carrier
Front Light
Stem-Mounted
Integrated with the frame
Stem-Mounted
Front Light
Integrated with
the frame
the frame
Front Light
Rear Light
Built-In rear light
Integrated rear light
Built-in
Rear light
Integrated
Rear light
Display
Integrated with the stem
Mounted on the handlebars
Integrated with
the stem
the stem
Display
Mounted on the
handlebars
handlebars
Display
BOLD. REFINED.
THE ALL-NEW TENWAYS STYLE
THE ALL-NEW TENWAYS STYLE
Aesthetics with A Purpose
Born from automotive design, these newly upgraded lights fuse elegance with intention—because true style should perform as beautifully as it looks.

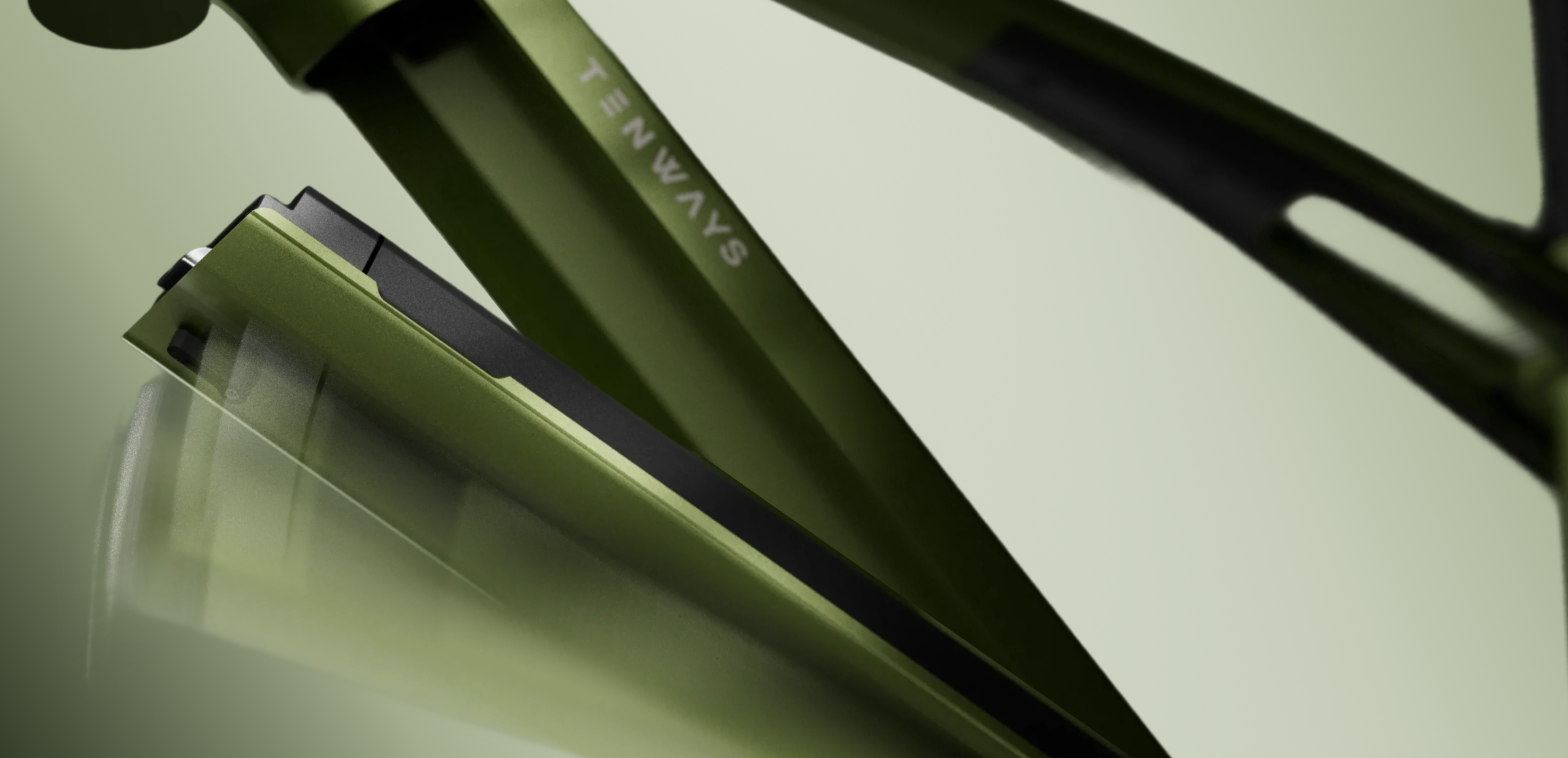

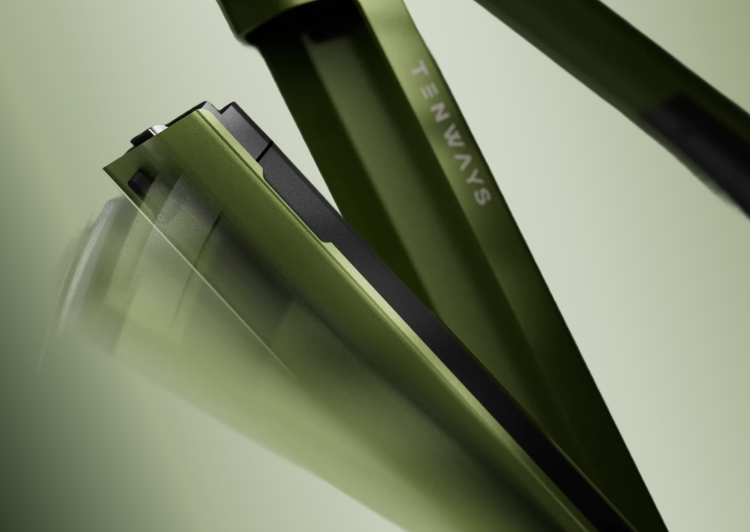

Large portable battery,
up to 100 km range
up to 100 km range
Large portable battery,
up to 100 km range
up to 100 km range
560 Wh
Capacity
Seamless
Integration
A large battery for long-range rides, seamlessly integrated for a sleek, streamlined look.

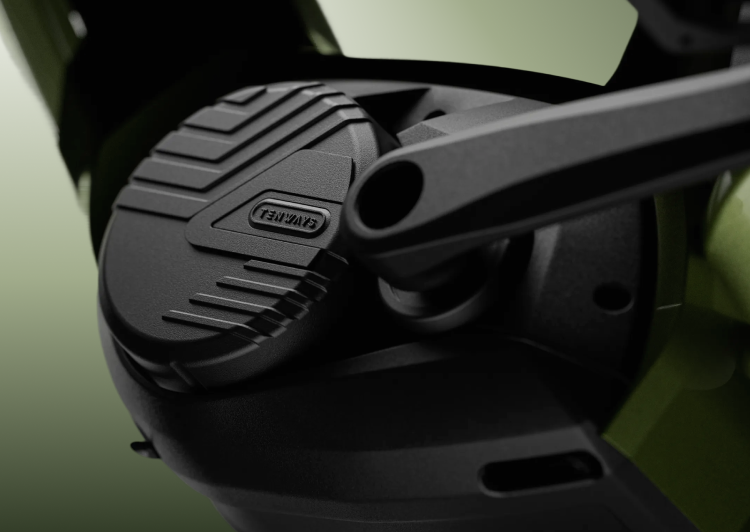

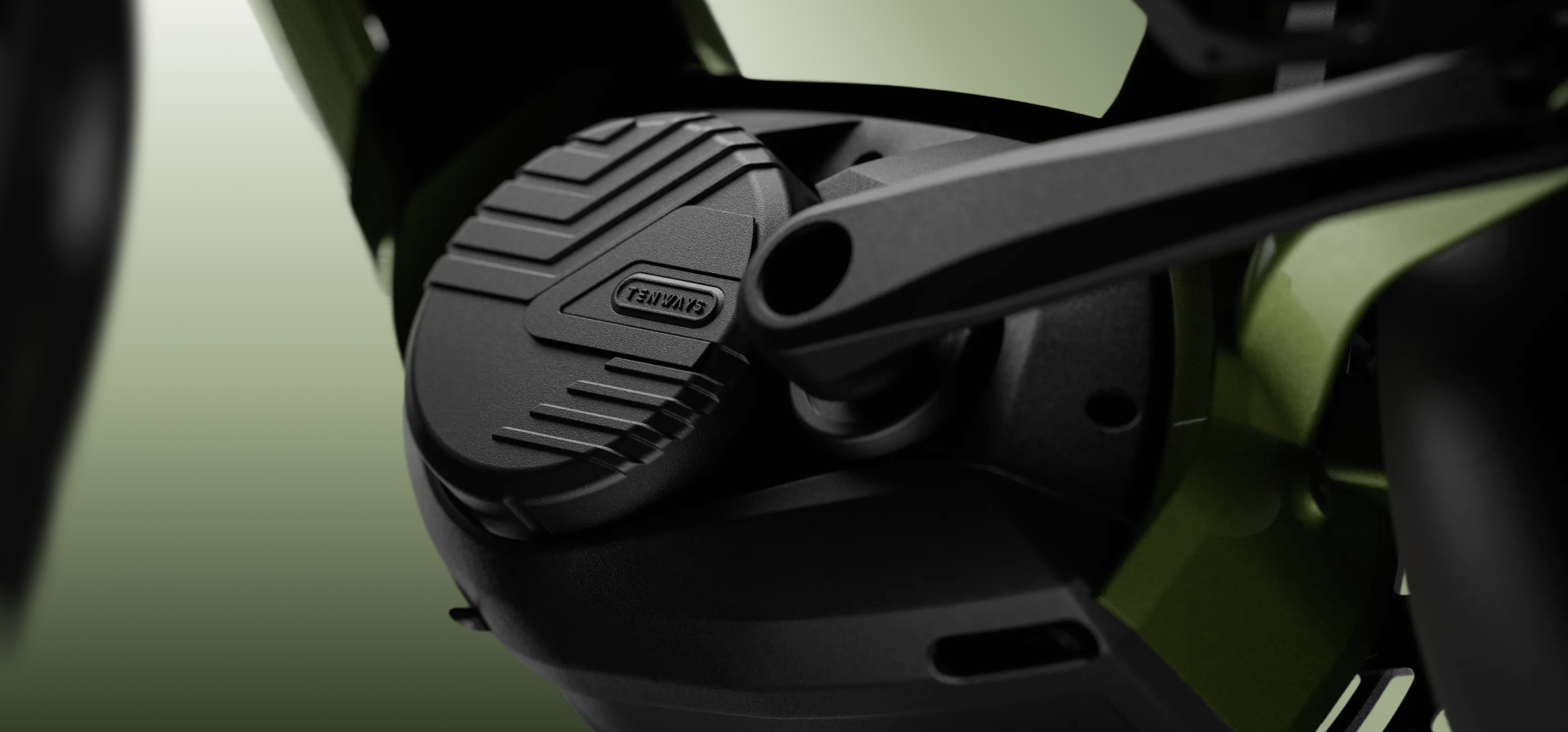

Powerful mid-drive motor for steep climbs
Powerful mid-drive motor for steep climbs
The robust mid-drive motor delivers the power for steep climbs and heavy loads, while its concealed design keeps the frame slim and uncluttered.
The robust mid-drive motor delivers the power for steep climbs and heavy loads, while its concealed design keeps the frame slim and uncluttered.
80 Nm max.
Torque

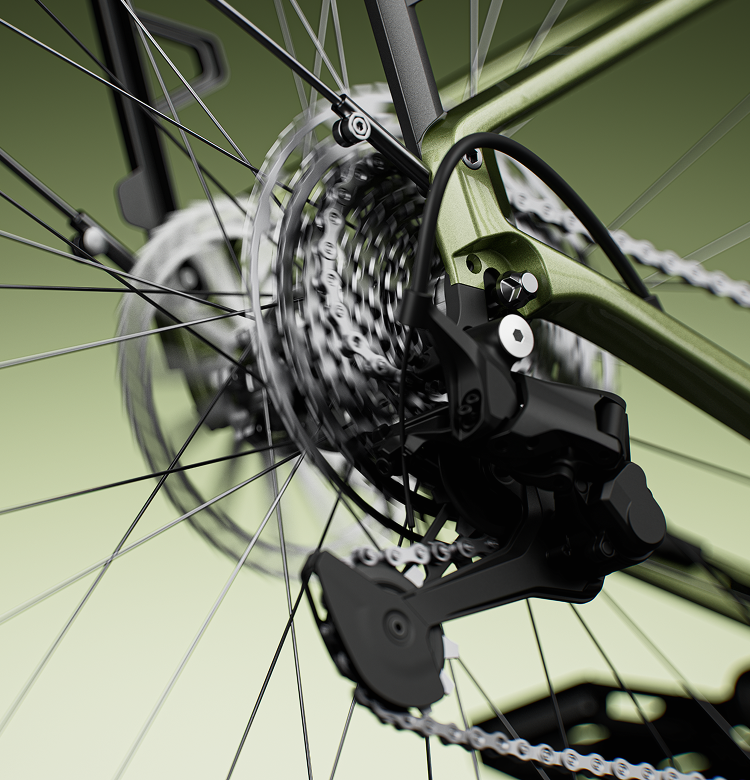

Highly versatile Shimano CUES 10-speed drivetrain
100%-430%
Gear ratio range
Reliable, crisp gear shifting lets everyone find their ideal cadence.
Highly versatile Shimano CUES 10-speed drivetrain
100%-430%
Gear ratio range
Reliable, crisp gear shifting lets everyone find their ideal cadence.

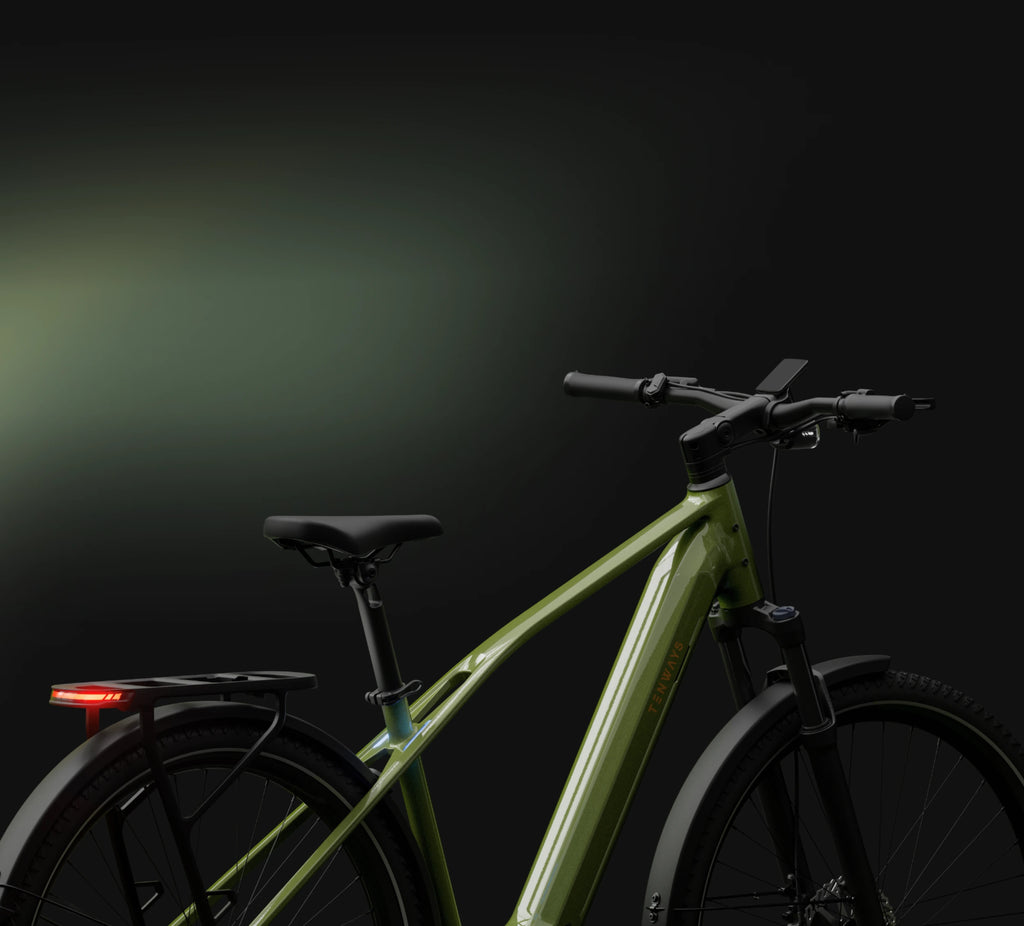

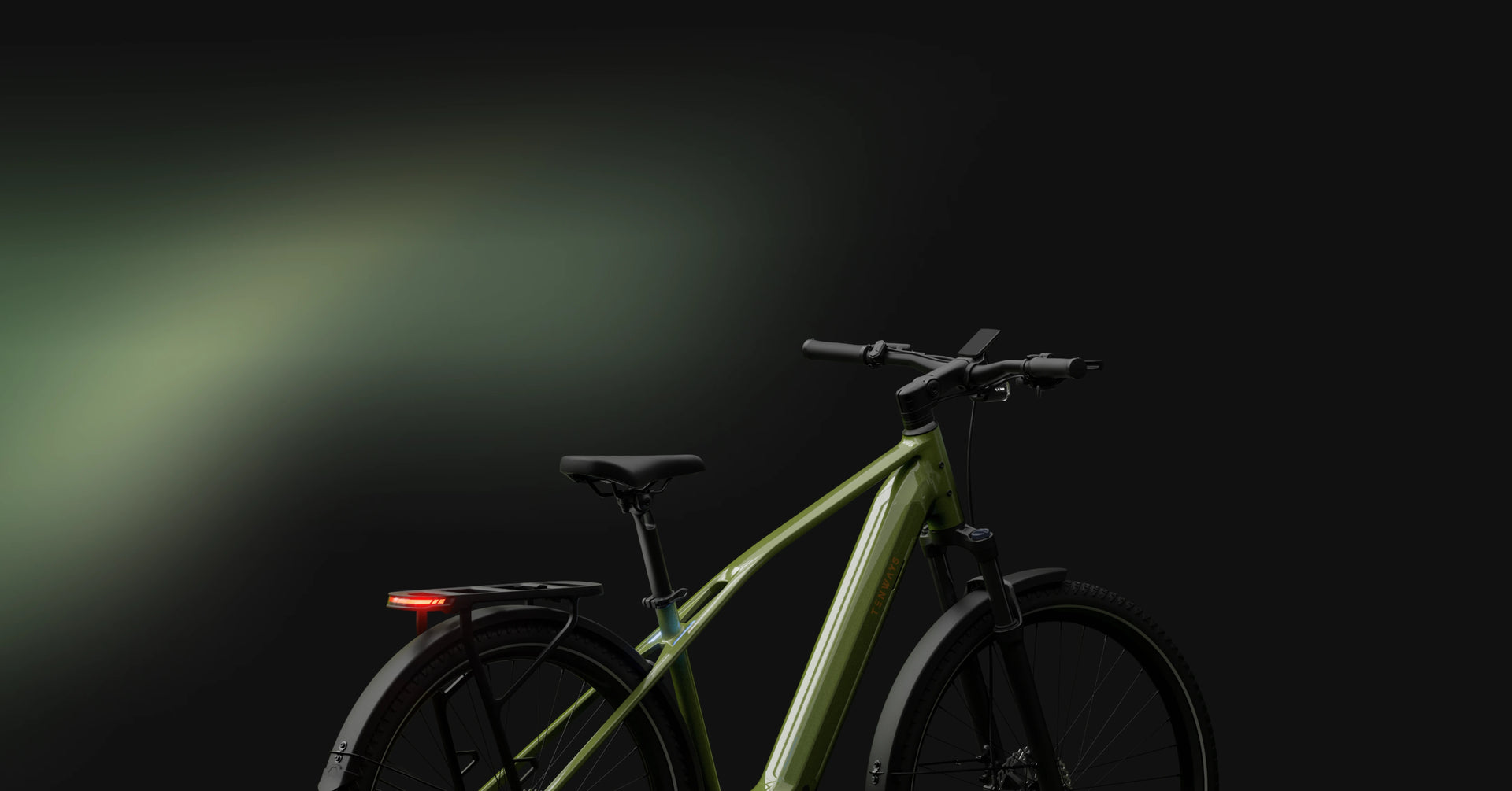

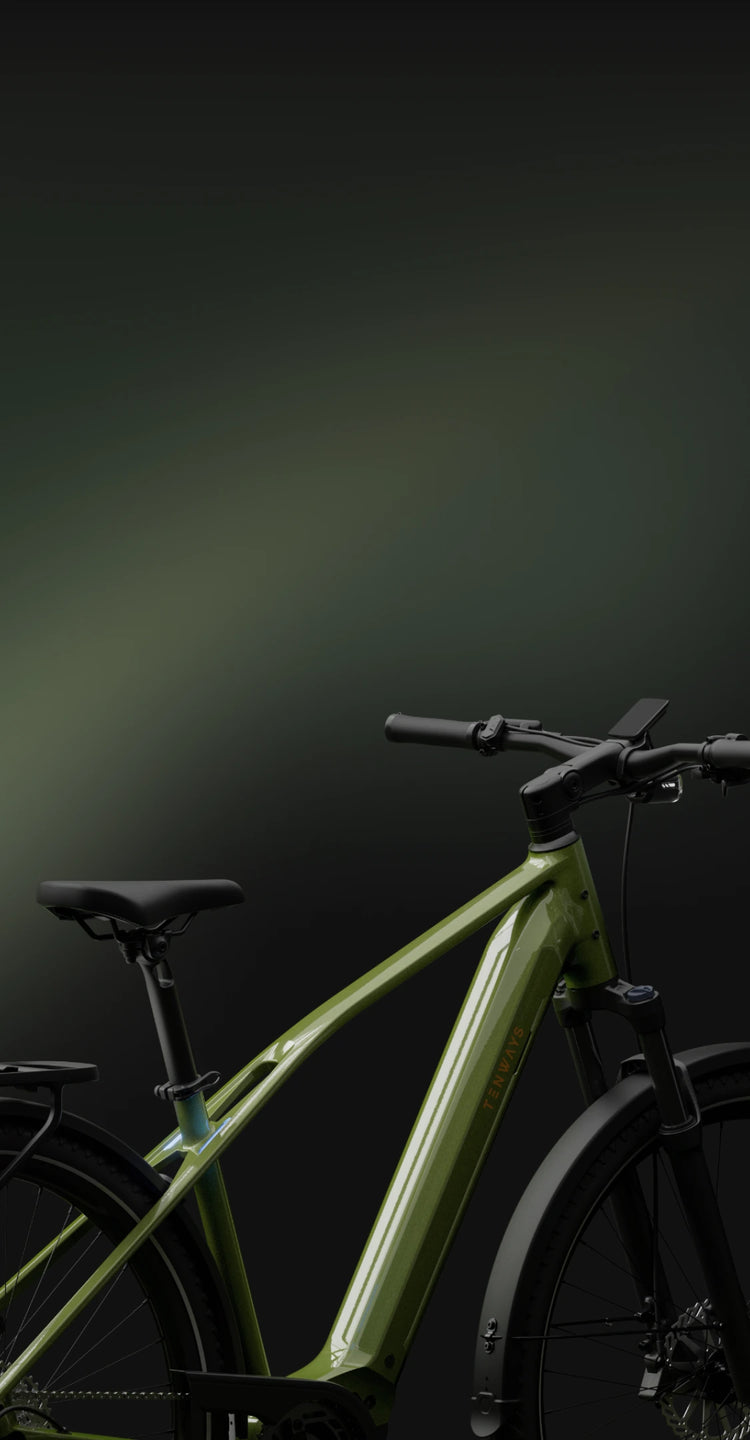

A Frame Redefined
An all-new, one-piece frame—crafted with state-of-the-art techniques—creates a lighter, slimmer, and unmistakably elegant silhouette, while delivering more comfortable handling.
From Daily Errands
From
Daily Errands
To Cross-Country
Adventures
Experience the future of cycling
Enhanced Comfort & Safety
Enhanced
Comfort & Safety
Comfort & Safety

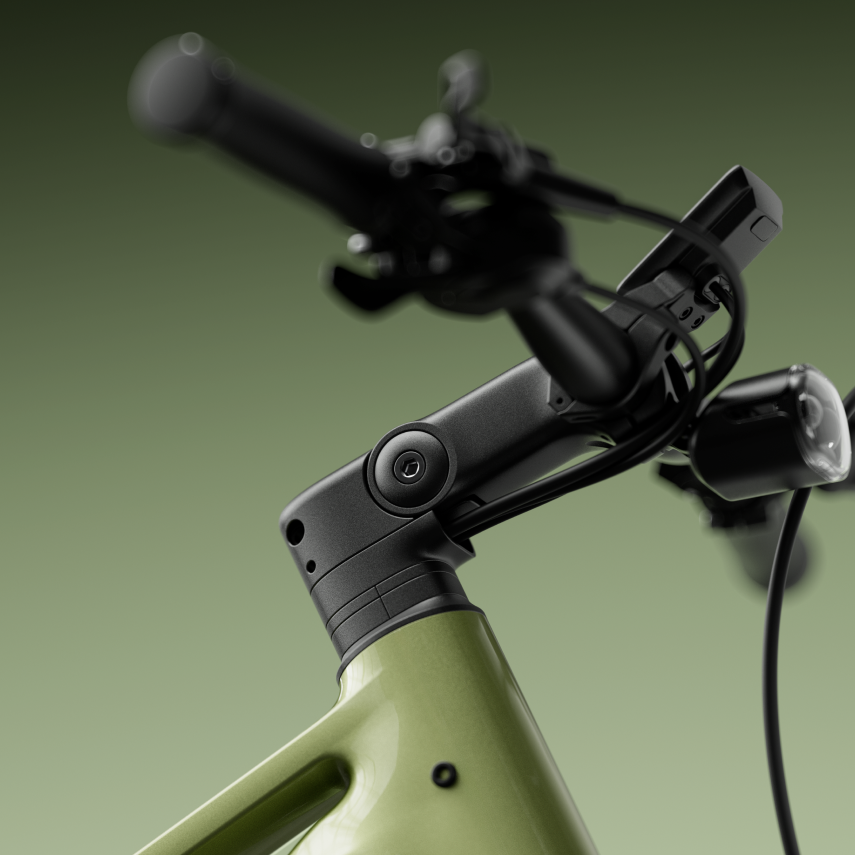

Adjustable Stem
Customizable handlebar height and angle for a perfect fit, regardless of riding style and body type.

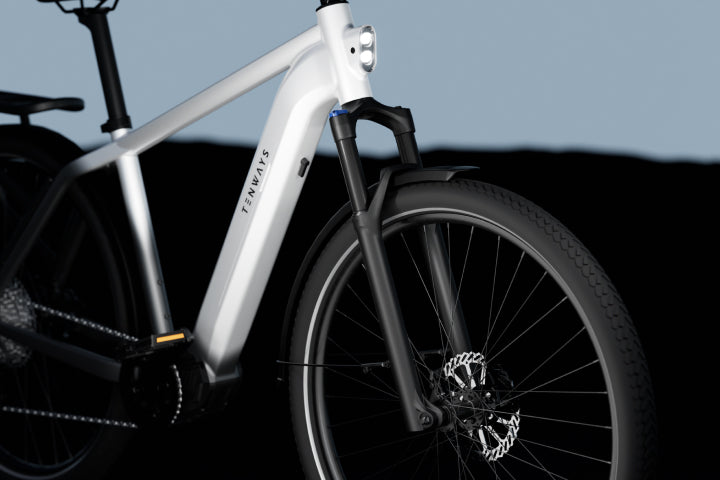

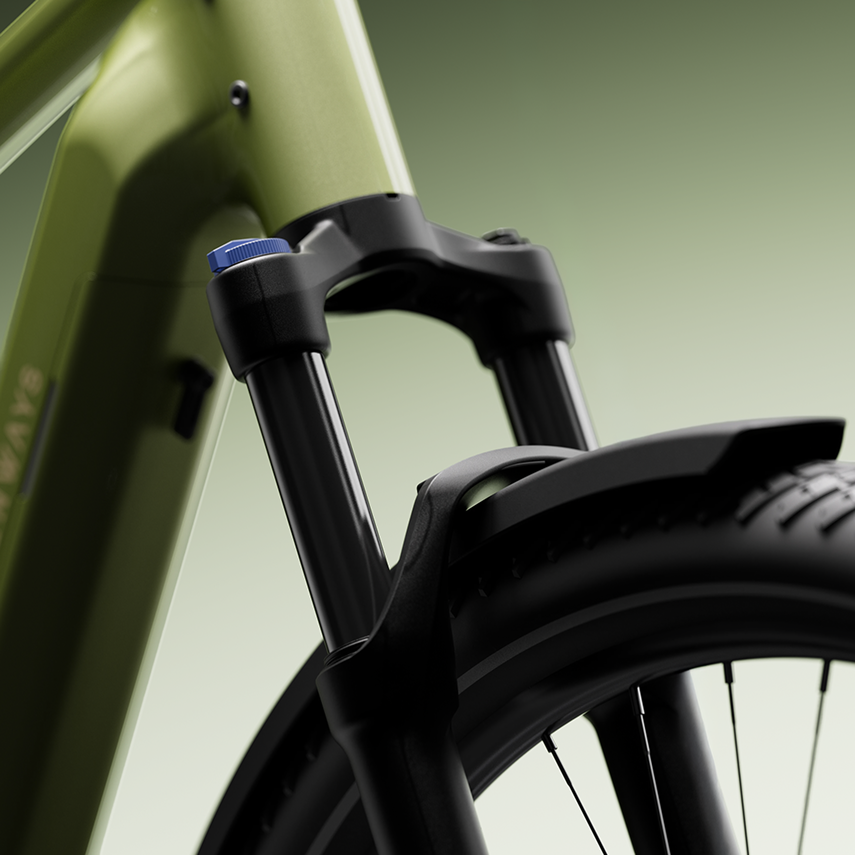

Suspension Front Fork
Absorbs any shocks for smooth, stable rides on uneven terrain.

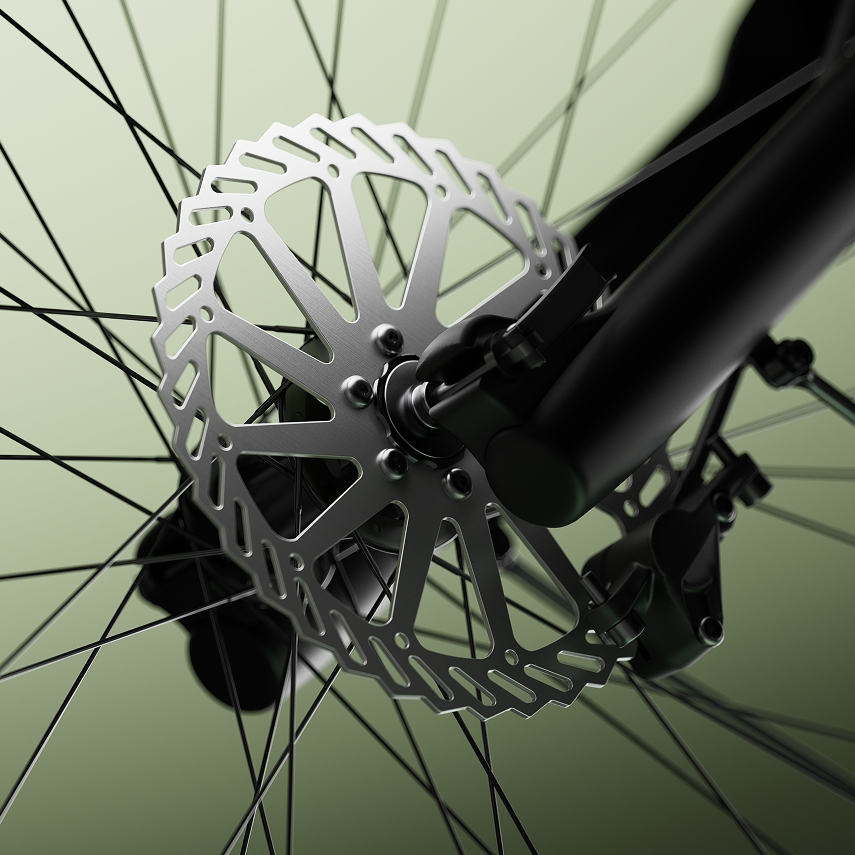

Hydraulic Disc Brakes
Safe and reliable stopping power in all weather conditions.

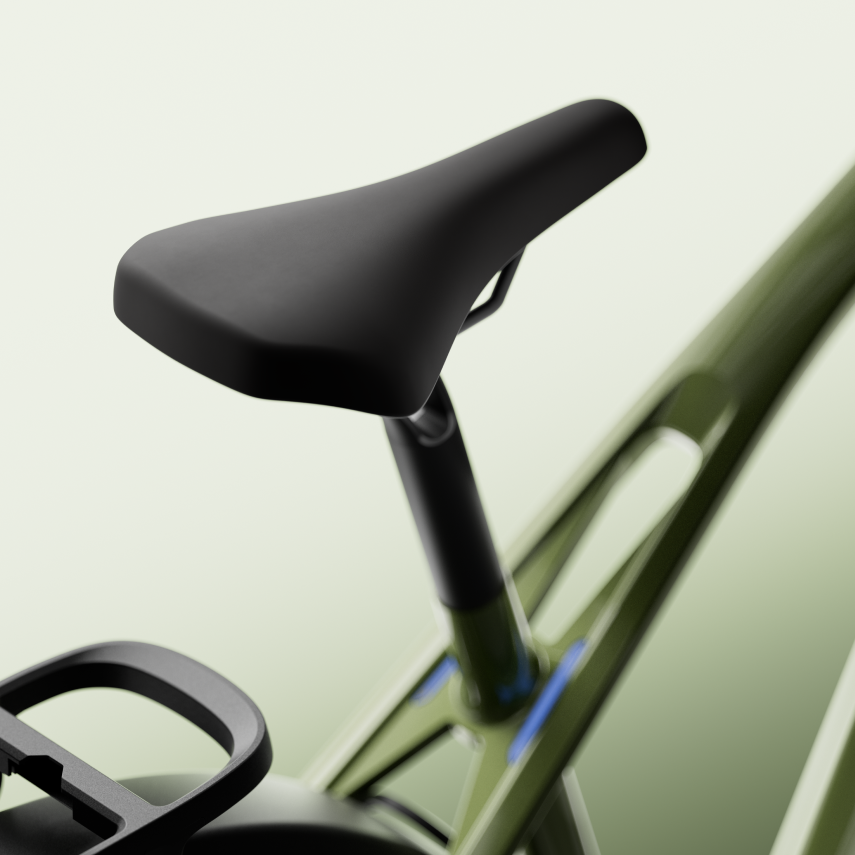

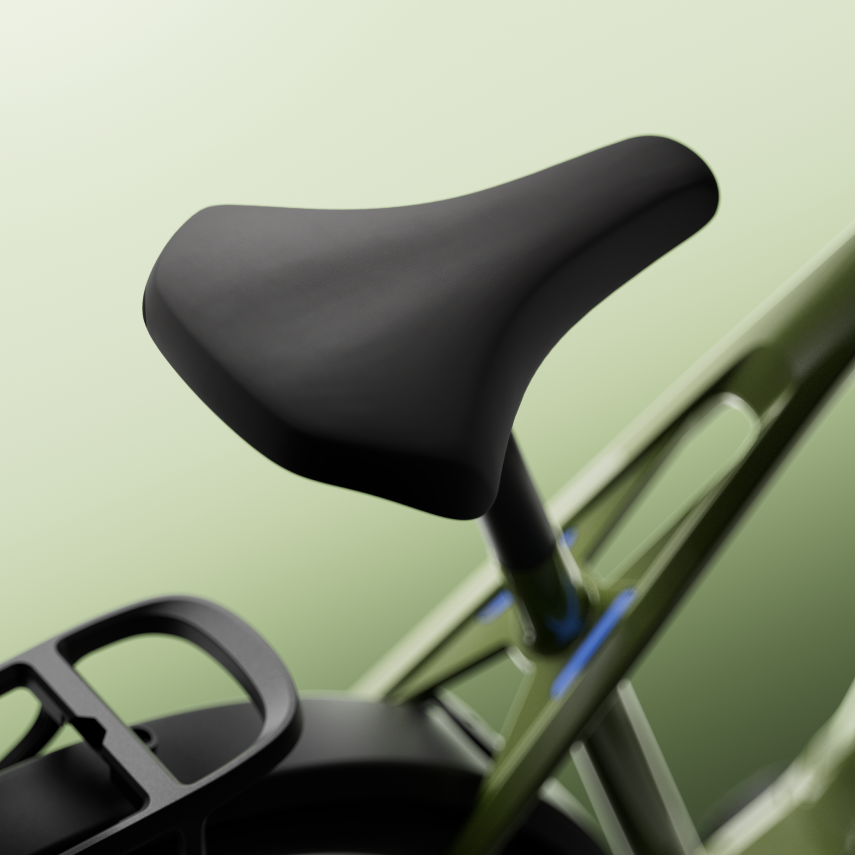

Selle Royal Saddle
Superior comfort for everyday cycling and longer rides around town.
Convenience in Style
Integrated TFT Color Display
An easy-to-read color display with navigation casting function, providing all your essential riding information at first glance.
Rear Carrier with MIK HD
Effortless mounting for all your gear, including child seats, for worry-free rides.
Installation Points
Dedicated mounting points for installing a front carrier.
Concealed Cabling
Clean lines with extra wiring protection.
Convenience in Style
Integrated TFT Color Display
An easy-to-read color display with navigation casting function, providing all your essential riding information at first glance.
Rear Carrier with MIK HD
Effortless mounting for all your gear, including child seats, for worry-free rides.
Installation Points
Dedicated mounting points for installing a front carrier.
Concealed Cabling
Clean lines with extra wiring protection.
