Versatile features at your fingertips
Status
Default
Box cover
Black
Stem angle
Lights
OFF
Light signals
Click to view
Seatpost extension

Flagship Design

Looks So Cool
Because It Is.
Eye-catching Ride
Automatic Ambient Light

Nicely greets you as soon as you start your bike. A unique feature that sets the scene for an eye-catching ride.

All-weather Visible Ride

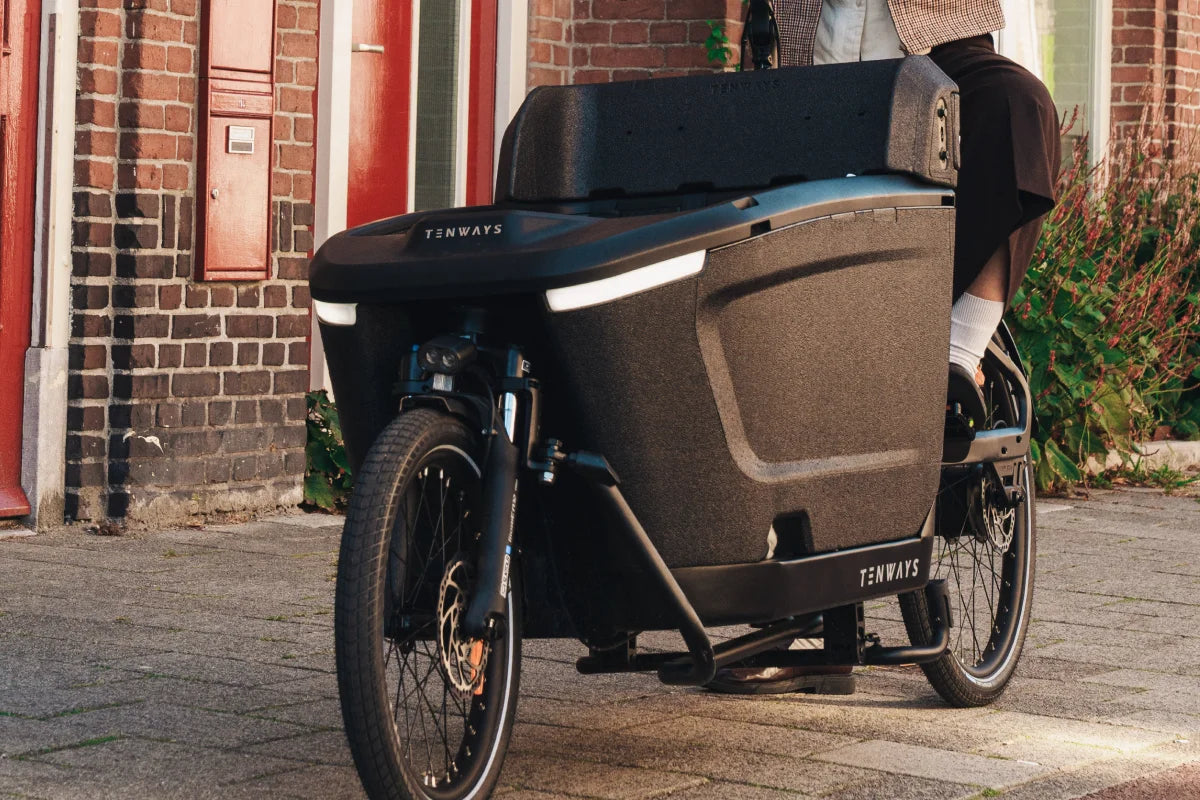

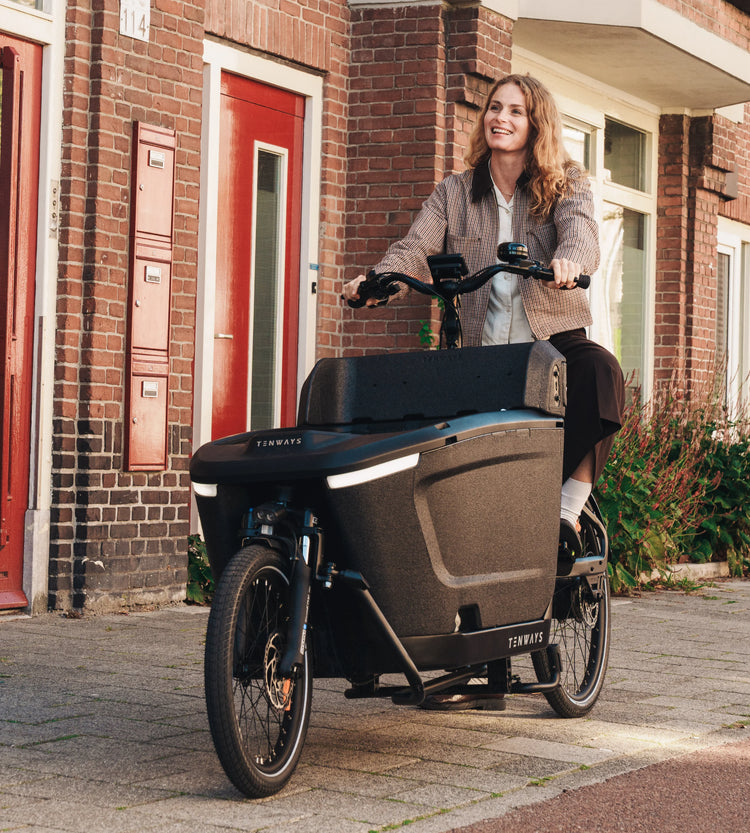

Car-grade Side Lighting

Experience safety in style. High-visibility, fog-proof daytime running lights give you peace of mind in all weathers, at all times.

Worry-free Ride
Turn Signals Included

Combining simplicity with functionality, the daytime running lights act as direction indicators at the touch of a button.

*The use of this function is subject to local laws and regulations.

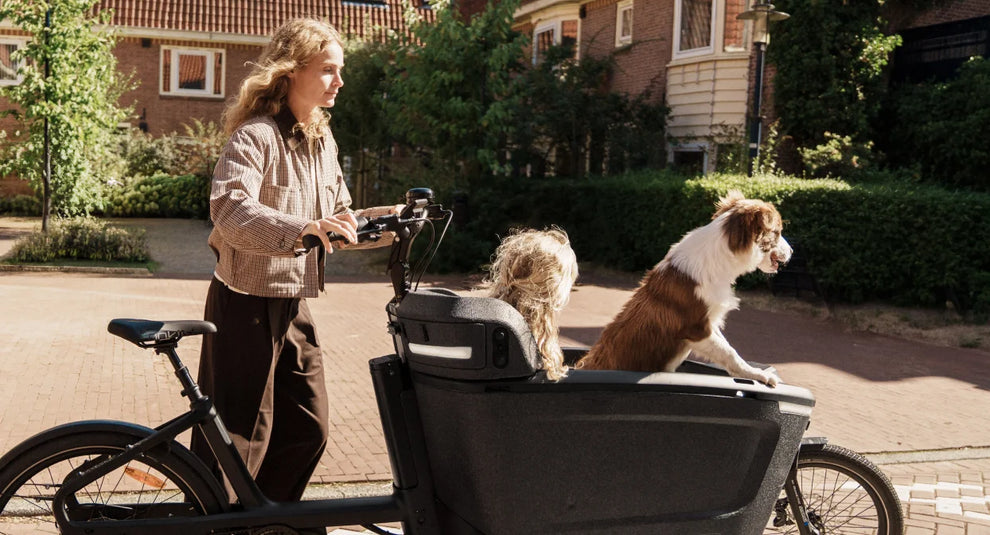

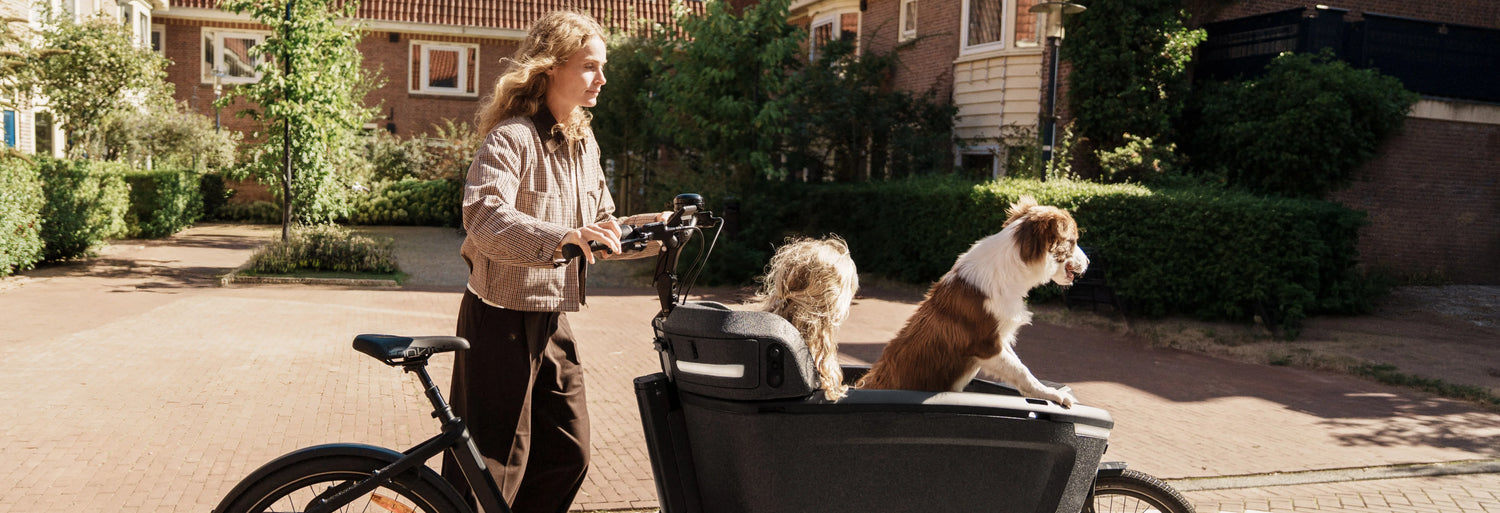

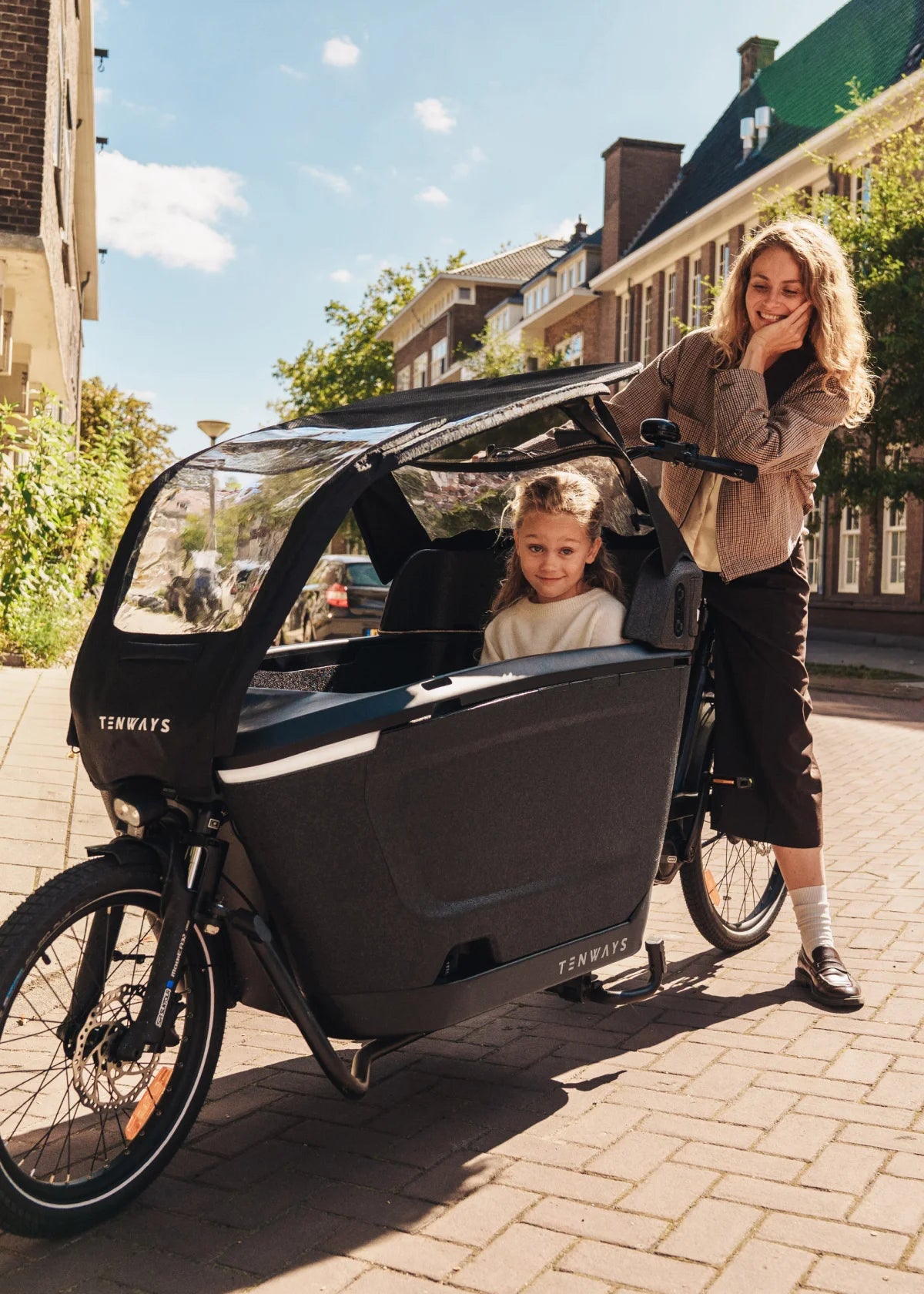

Family-friendly Set-up

A cozy ride
for your little ones

Ample comfort for adult riders and child passengers, with a versatile cargo box for stress-free travel.

  • Extra Large Cargo Box
    Room to
    Spare
    800-liter capacity
    With 5-point safety belts
  • Suspension Front Fork
    Cushioned
    Comfort
    50 mm travel
    Tailored for front passengers
  • Royalgel ™ Saddle
    Longer Rides
    Made Easy
    Up to 40%
    Pressure peak reduction
  • Two-point Adjustable Stem
    Suits for the Whole Family
    0° to 90° angle
    0-100 mm extra height

The beauty of life is in the details

Ideal for helping parents manage daily life while feeling great. This eye-catcher is built with attention to the finest details.

Style
Comfort
Performance
files/9b2421ad8ffb6d1d6560ce395feaa36a_3d1f295f-da3c-4817-ab57-07ff87ac0f5b.png files/79090927fc552709d048de69b8cbd27a_ec39b210-877a-4568-8a3f-e938b1bcfa33.png files/74a2ab64ae2733bcdda81f5b90f1a5af_f6d2aee2-6e3c-4542-b92c-0ac077278b6f.png

Ride Smart.

Ride Connected.

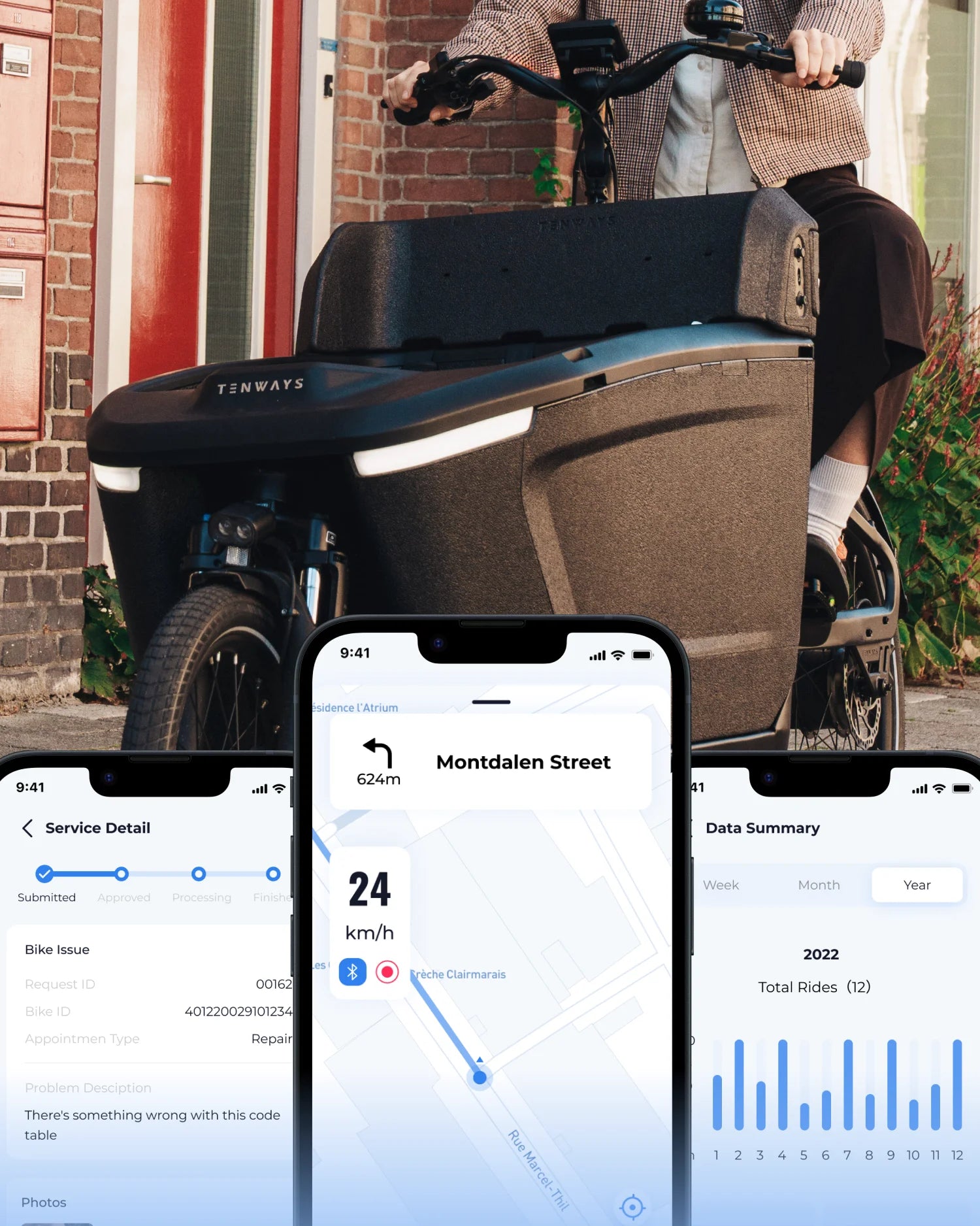

Connect with the TENWAYS app to record, track, navigate, and communicate. Your e-bike’s perfect companion, providing real-time, seamless data.

Connect with the TENWAYS App to record your rides in real time and track your stats.

Cast directions straight to the integrated LCD display for seamless navigation.

Communicate with our team directly through the integrated help center.

Ready to Ride on Delivery

The CARGO ONE will be delivered to you fully assembled for added convenience.

  • Motor*

    Bafang M600 Cargo (100 Nm Torque)

  • Sensor

    Integrated Torque Sensor for the Mid-drive Motor

  • Controller

    Integrated Controller of the Mid-drive Motor

  • Display

    TFT LCD Color Display

  • Battery

    960Wh (48V, 20Ah) Lithium-ion Battery with LG Cells

  • Top Speed*

    25 km/h

  • Range*

    60 to 90 km

    *Results of single battery charge range tests with an empty cargo box. Actual performance will vary depending on load, PAS levels, temperature, road conditions, rider's weight, etc.

  • Climbing Ability

    Suitable for Climbing Slopes

    *The actual performance would depend on the rider's physical strength.

  • Frame

    6061 Aluminium Frame

  • Crankset

    Aluminium Alloy Crankset

  • Wheels

    6061 Aluminium Rims

  • Rear Derailleur

    Enviolo Stepless Shifting Hub

  • Drivetrain

    Gates CDX Carbon Belt

  • Front Fork

    SR SUNTOUR Suspension Front Fork

  • Tires

    SCHWALBE 20''*2.15/26''*2.15 Puncture-proof Tires

  • Brake

    Tektro Four-piston Hydraulic Disc Brakes

  • Bottom Bracket

    Fully-concealed Bottom Bracket

  • Saddle

    Selle Royal Saddle

  • Weight*

    Net weight: 56 kg (excluding all accessories)
    Full weight: 58 kg (including all accessories)

    *All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.

*Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.

Geometry

One Size (mm) SYMBOL
Effective top tube A 653.5
Seat tube length B 485
Head tube C 85
Steering angle D 64.4
Seat tube angle E 69.1
Chainstay F 436
Wheelbase G 2030
Standover H 443
FAQ
What are the dimensions of the cargo bike?

Cargo bike Size: 2655.9*1304.8*685.9 mm (L*H*W)

Cargo box size: 1125.5*547*562.5 mm (L*H*W)

CARGO ONE seat size: 532*284*247 mm (L*H*W)

How much does the cargo bike weigh and how much can it carry?

The cargo bike weighs 56kg including the battery, the maximum load capacity (including the cargo box’s load and the rider’s weight) is 250kg, and its cargo box can take a load of up to 60kg.

How far can I cycle on a single charge?

When the cargo box is empty, the range is 60km-90km*.

*Results of single battery charge range tests with an empty cargo box. Actual performance will vary depending on load, PAS levels, temperature, road conditions, rider's weight, etc.
Is the cargo bike difficult to ride when it is loaded up?

Thanks to its low center of gravity and intricately designed craftwork, CARGO ONE feels agile and smooth when its front load is empty, and even when it is fully loaded, riding will feel just as effortless!

Do I need to assemble the cargo bike myself?

No, the bike will already be fully assembled when delivered, and you are ready to take a test ride as soon as you receive it.
